產品中心當前位置：首頁>>產品中心>>卷筒聯軸器

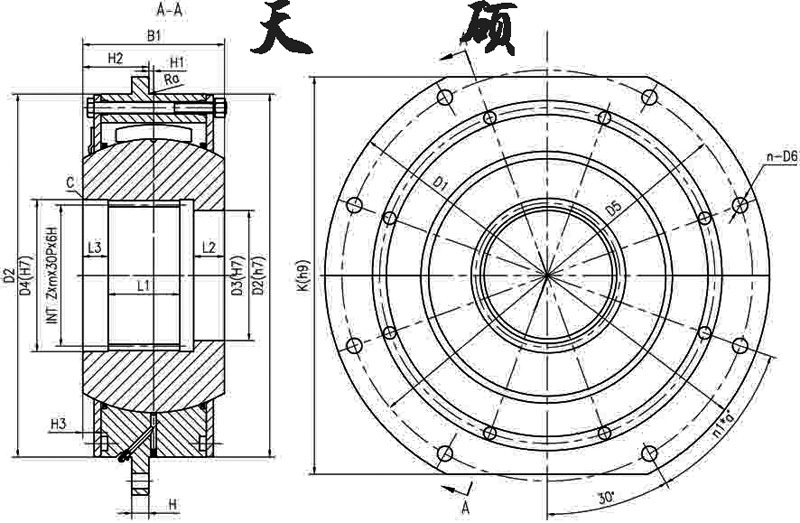

WZL內花鍵卷筒聯軸器主要參數及尺寸: mm
|
型號
|
WZL01
|
WZL02
|
WZL03
|
WZL04
|
WZL05
|
WZL06
|
WZL07
|
WZL08
|
WZL09
|
WZL10
|
WZL11
|
WZL12
|
WZL13
|
WZL14
|
WZL15
|
WZL16
|
WZL17
|
WZL18
|
||
|
公稱扭矩 kN.m
|
6.3
|
9.0
|
12.5
|
16
|
20
|
25
|
40
|
63
|
80
|
125
|
200
|
315
|
400
|
500
|
630
|
800
|
1120
|
1490
|
||
|
傳 遞 扭 矩
KN.M
|
工 作
級 別
|
M3
|
6.3
|
9.0
|
12.5
|
16
|
20
|
25
|
40
|
63
|
80
|
125
|
200
|
315
|
400
|
500
|
630
|
800
|
1120
|
1490
|
|
M4
|
5.6
|
8.0
|
11.2
|
14
|
18
|
22.4
|
35.5
|
56
|
71
|
112
|
180
|
280
|
355
|
450
|
560
|
710
|
1000
|
1380
|
||
|
M5
|
5.0
|
7.1
|
10.0
|
12.5
|
16
|
20
|
31.5
|
50
|
63
|
100
|
160
|
250
|
315
|
400
|
500
|
630
|
900
|
1250
|
||
|
M6
|
4.5
|
6.3
|
9.0
|
11.2
|
140
|
18
|
28
|
45
|
56
|
90
|
140
|
224
|
280
|
355
|
450
|
560
|
800
|
1120
|
||
|
M7
|
4.0
|
5.6
|
8.0
|
10.0
|
12.05
|
16
|
25
|
40
|
90
|
80
|
125
|
200
|
250
|
315
|
400
|
500
|
710
|
1000
|
||
|
M8
|
3.55
|
5.0
|
7.1
|
9.0
|
11.2
|
14
|
22.4
|
35.5
|
45
|
71
|
112
|
180
|
224
|
280
|
355
|
450
|
630
|
900
|
||
|
GB3478.1
( 花鍵 INT Z×m×30P×6H)
|
15Z×3m
|
18Z×3m
|
22Z×3m
|
27Z×3m
|
18Z×5m
|
22Z×5m
|
26Z×5m
|
30Z×5m
|
34Z×5m
|
38Z×5m
|
26Z×8m
|
30Z×8m
|
34Z×8m
|
38Z×8m
|
44Z×8m
|
50Z×8m
|
44Z×10m
|
56Z×10m
|
||
|
K(h9)
|
250
|
280
|
300
|
320
|
340
|
360
|
400
|
450
|
500
|
530
|
580
|
600
|
640
|
700
|
760
|
860
|
1020
|
1100
|
||
|
B1
|
80
|
84
|
92
|
97
|
127
|
137
|
157
|
167
|
182
|
192
|
207
|
222
|
237
|
262
|
287
|
352
|
410
|
430
|
||
|
D1
|
300
|
320
|
340
|
360
|
380
|
400
|
450
|
500
|
550
|
580
|
650
|
680
|
710
|
780
|
850
|
950
|
1120
|
1200
|
||
|
D2(h7)
|
190
|
200
|
220
|
240
|
260 ,
|
280
|
340
|
380
|
420
|
450
|
530
|
560
|
600
|
670
|
730
|
840
|
975
|
1055
|
||
|
D3(H7)
|
40
|
50
|
60
|
70
|
80
|
100
|
120
|
140
|
160
|
180
|
190
|
220
|
250
|
280
|
320
|
360
|
400
|
540
|
||
|
D4(H7)
|
50
|
60
|
70
|
85
|
100
|
120
|
140
|
160
|
180
|
200
|
222
|
254
|
286
|
318
|
366
|
420
|
460
|
580
|
||
|
D5
|
260
|
280
|
300
|
320
|
34 0
|
360
|
400
|
450
|
500
|
530
|
600
|
630
|
660
|
730
|
800
|
900
|
1055
|
1135
|
||
|
H
|
12
|
15
|
20
|
25
|
35
|
45
|
50
|
60
|
||||||||||||
|
H1
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
15
|
25
|
||||||||||
|
H2
|
37
|
39
|
43
|
44.5
|
59.5
|
63.5
|
73.5
|
77.5
|
85
|
90
|
96.5
|
104
|
110.5
|
123
|
134.5
|
166
|
190
|
190
|
||
|
H3
|
4
|
5
|
5.5
|
10.5
|
12.5
|
13.5
|
16
|
14
|
15.5
|
16
|
17.5
|
16
|
17.5
|
37
|
||||||
|
L1
|
30
|
30
|
35
|
40
|
50
|
55
|
70
|
75
|
85
|
95
|
105
|
120
|
135
|
150
|
170
|
220
|
260
|
270
|
||
|
L2
|
18
|
22
|
25
|
30
|
35
|
40
|
45
|
55
|
60
|
|||||||||||
|
L3
|
22
|
37
|
52
|
65
|
70
|
|||||||||||||||
|
n-D6
|
8—14
|
8--18
|
12--22
|
24--22
|
24--26
|
24--29
|
||||||||||||||
|
螺栓
|
M12
|
M16
|
M20
|
M24
|
M27
|
|||||||||||||||
|
n1× α°
|
1×40
|
2 × 2 0
|
5 × 1 0
|
|||||||||||||||||
|
Ra
|
1.6
|
2
|
2.5
|
3
|
4
|
|||||||||||||||
|
C
|
1.6
|
2
|
2.5
|
3
|
4
|
5
|
6
|
|||||||||||||
|
轉動慣量 kg.m2
|
0.13
|
0.19
|
0.27
|
0.37
|
0.56
|
0.76
|
1.65
|
2.86
|
4.49
|
6.18
|
12.5
|
16.4
|
23.13
|
39.18
|
59.25
|
114.5
|
260.4
|
337.8
|
||
|
重量 kg
|
18.9
|
22.6
|
28
|
32.8
|
47
|
57
|
90
|
122
|
157
|
190
|
290
|
335
|
393
|
551
|
693
|
1250
|
1950
|
2250
|
||
